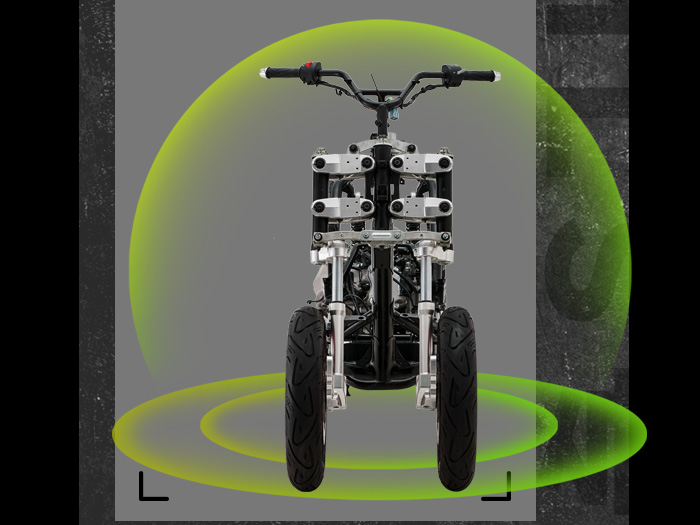

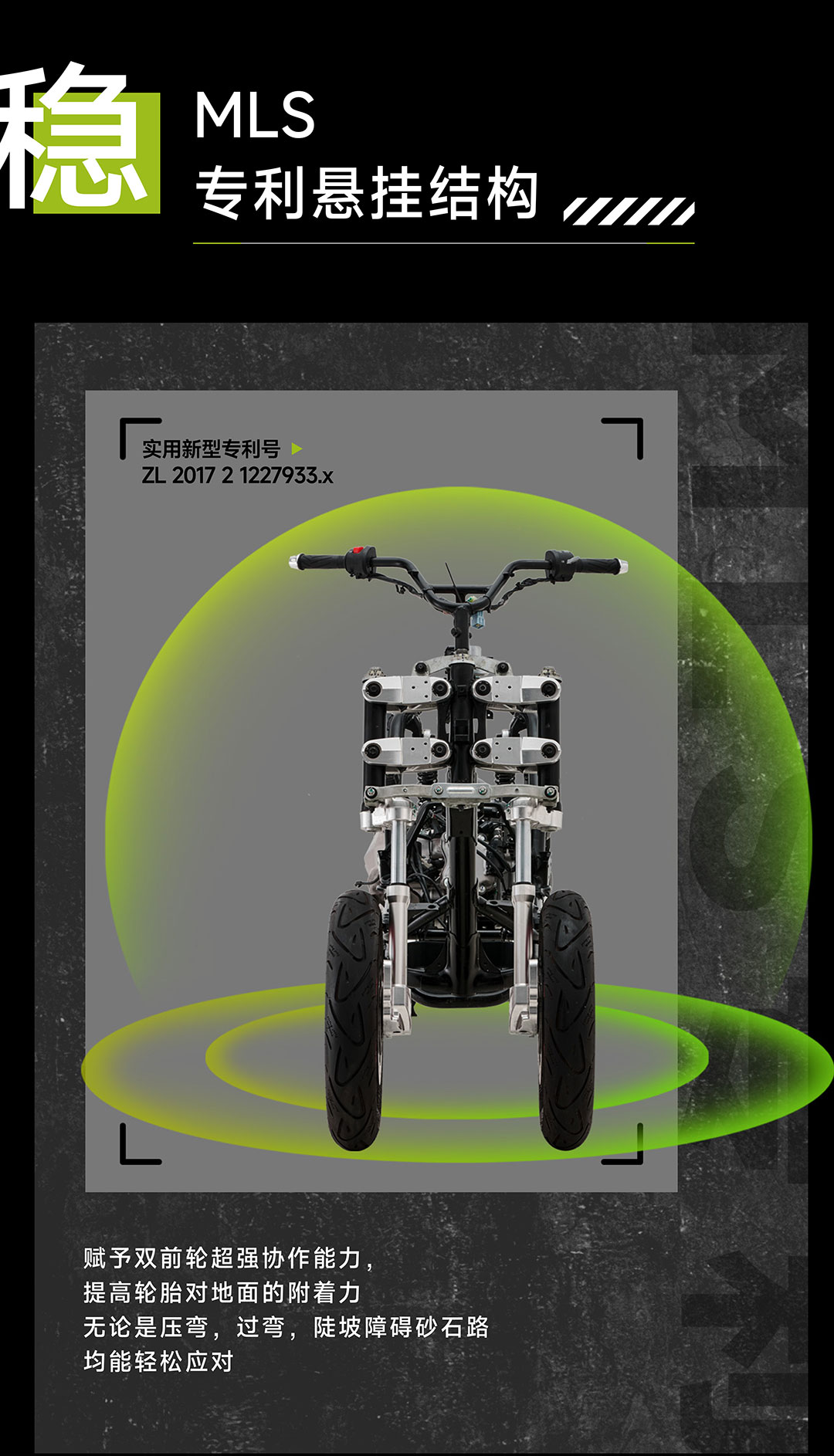

Endow the dual front wheels with super cooperation ability,
Improve tire adhesion to the ground
Whether it is bending or bending,
Steep slopes, obstacles and gravel roads can be easily handled
Grade 30%
Tilt 30°
The maximum drop distance between the double front wheels is 20cm

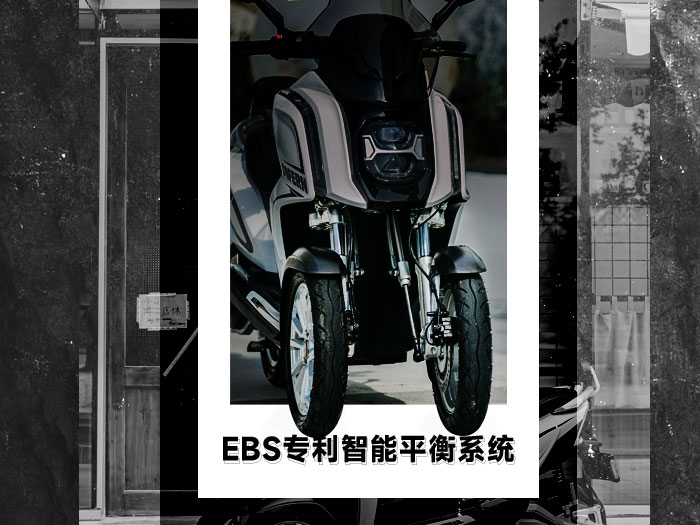

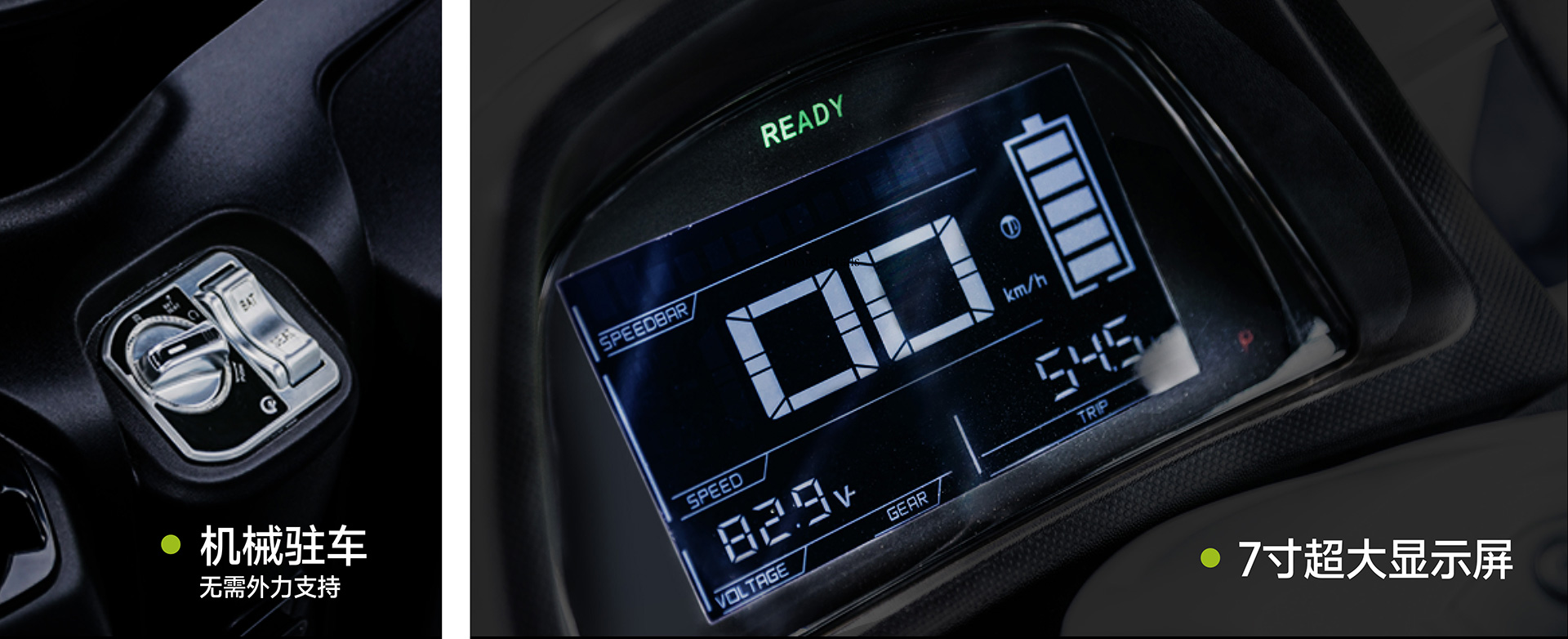

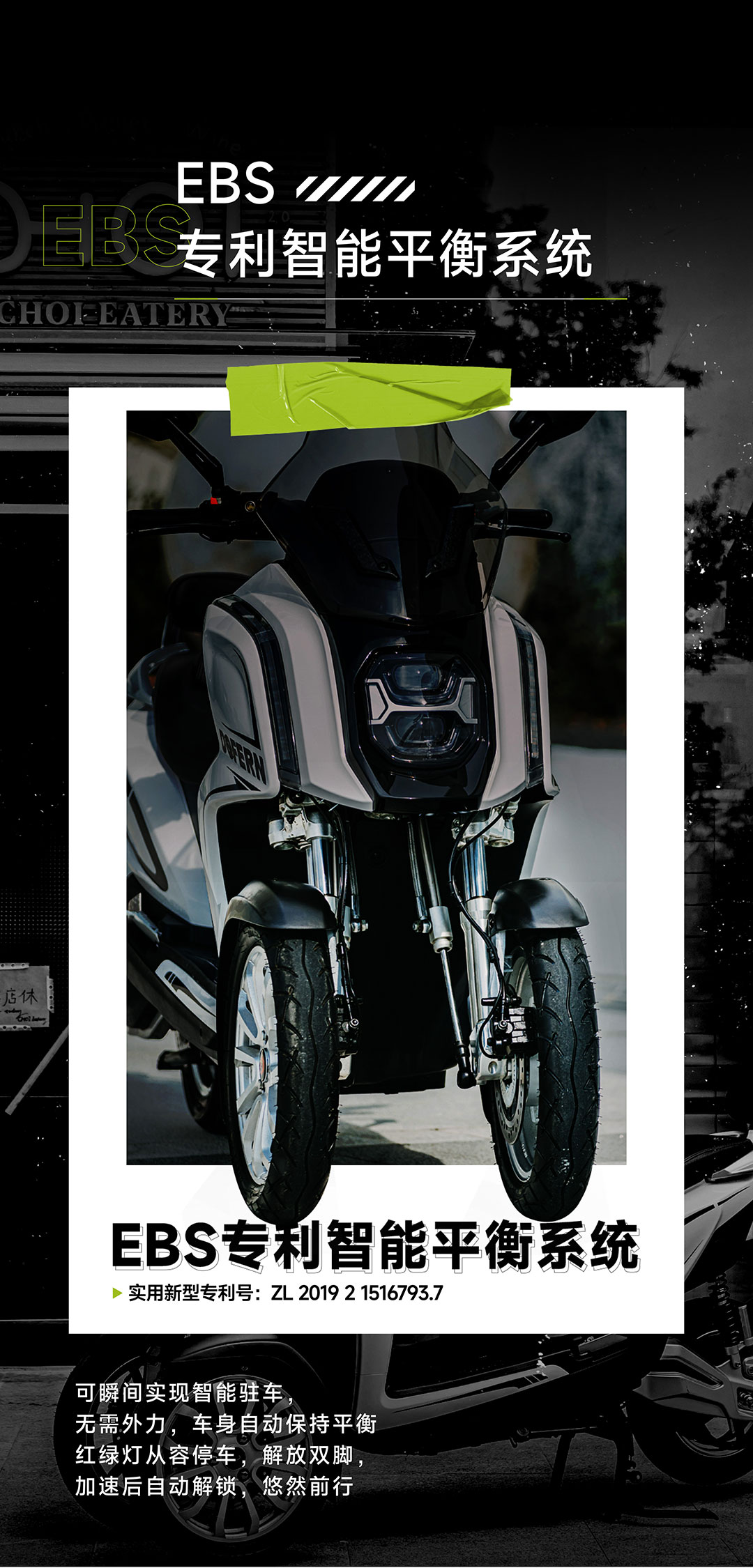

Intelligent parking can be realized instantly,
No external force is required, and the body automatically maintains balance
Stop calmly at traffic lights to free your feet.
Automatically unlock after acceleration and move forward leisurely
Solve your power troubles, start with full power anytime, anywhere

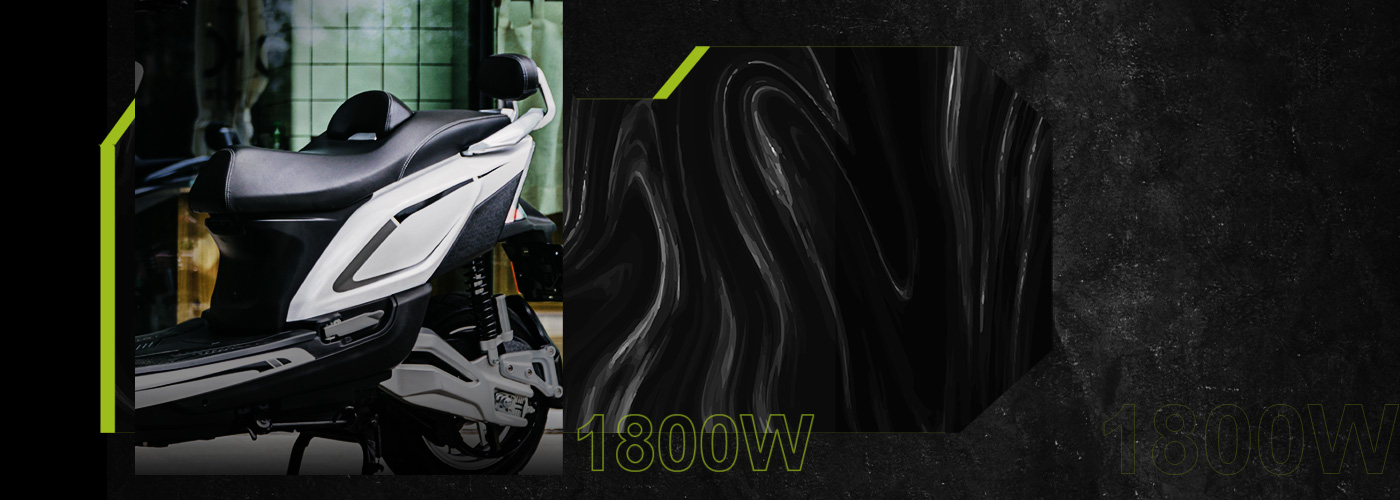

1800W high-power built-in charger is configured.
50ah battery can be fully charged in only 3 hours

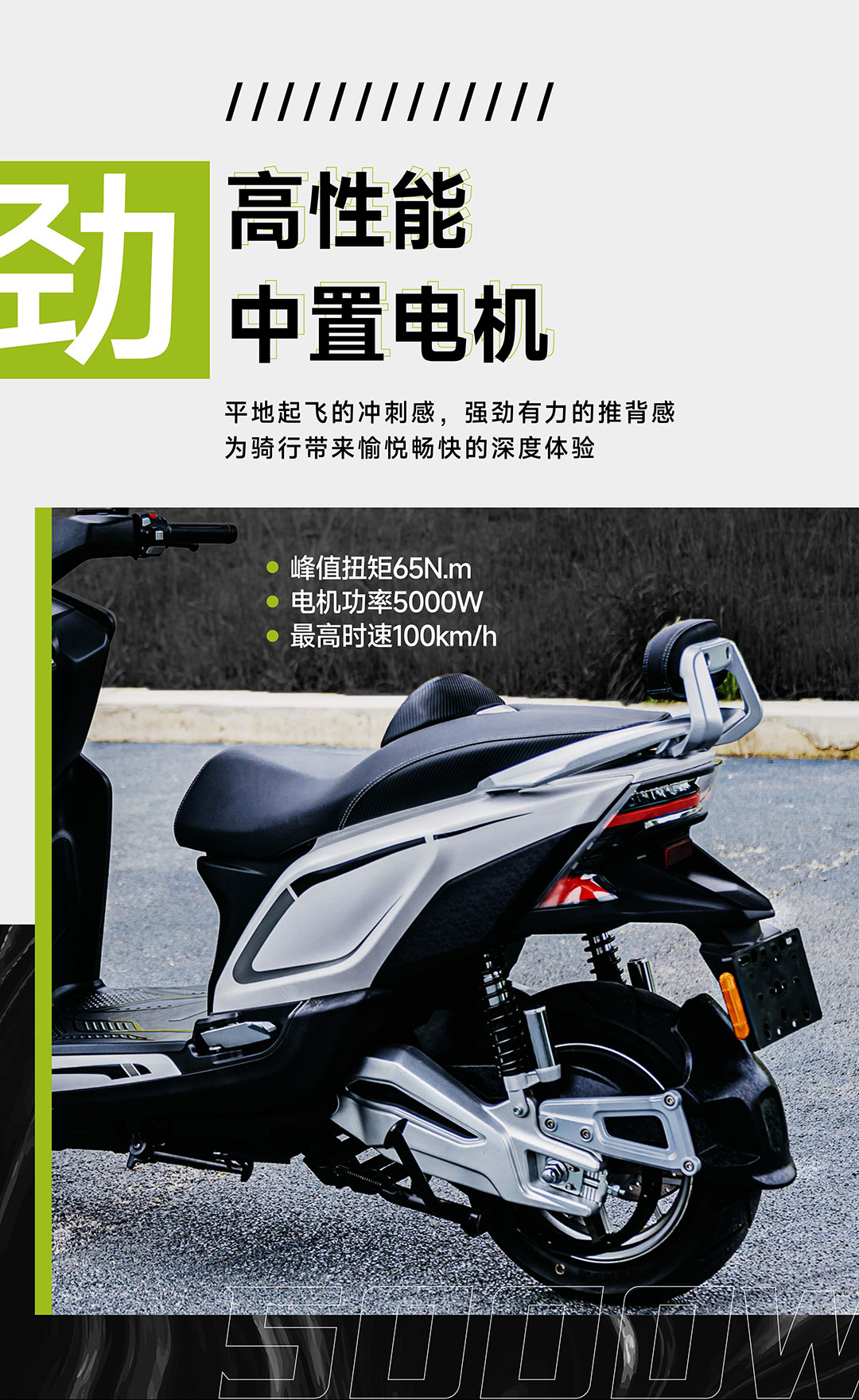

The sense of sprint and strong back pushing when taking off from the ground
Bring a pleasant and smooth in-depth experience for cycling
Peak torque 65N.m
Motor power5000W
Maximum speed100km/h
· Overcurrent protection
· Over temperature protection
· Short circuit protection
· Over discharge protection
· Overcharge protection
· Overvoltage protection
· Undervoltage protection

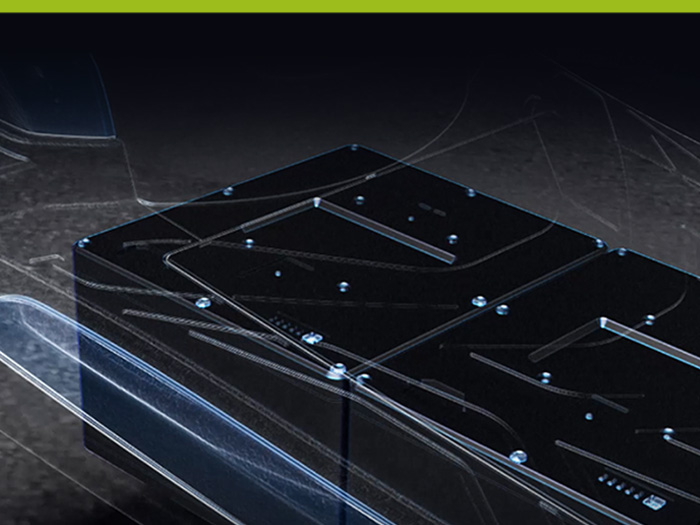

BMS protection system guards power safety

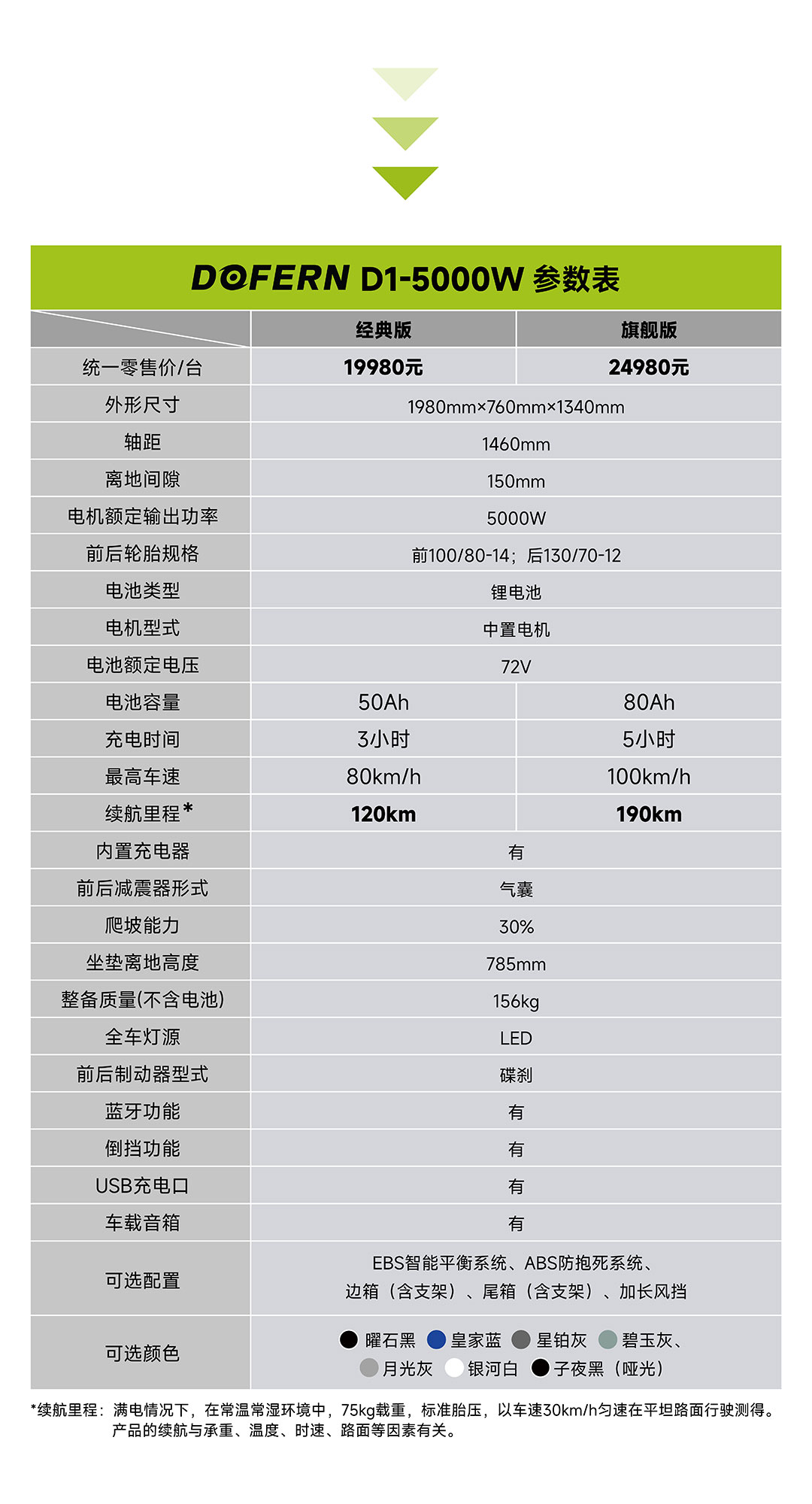

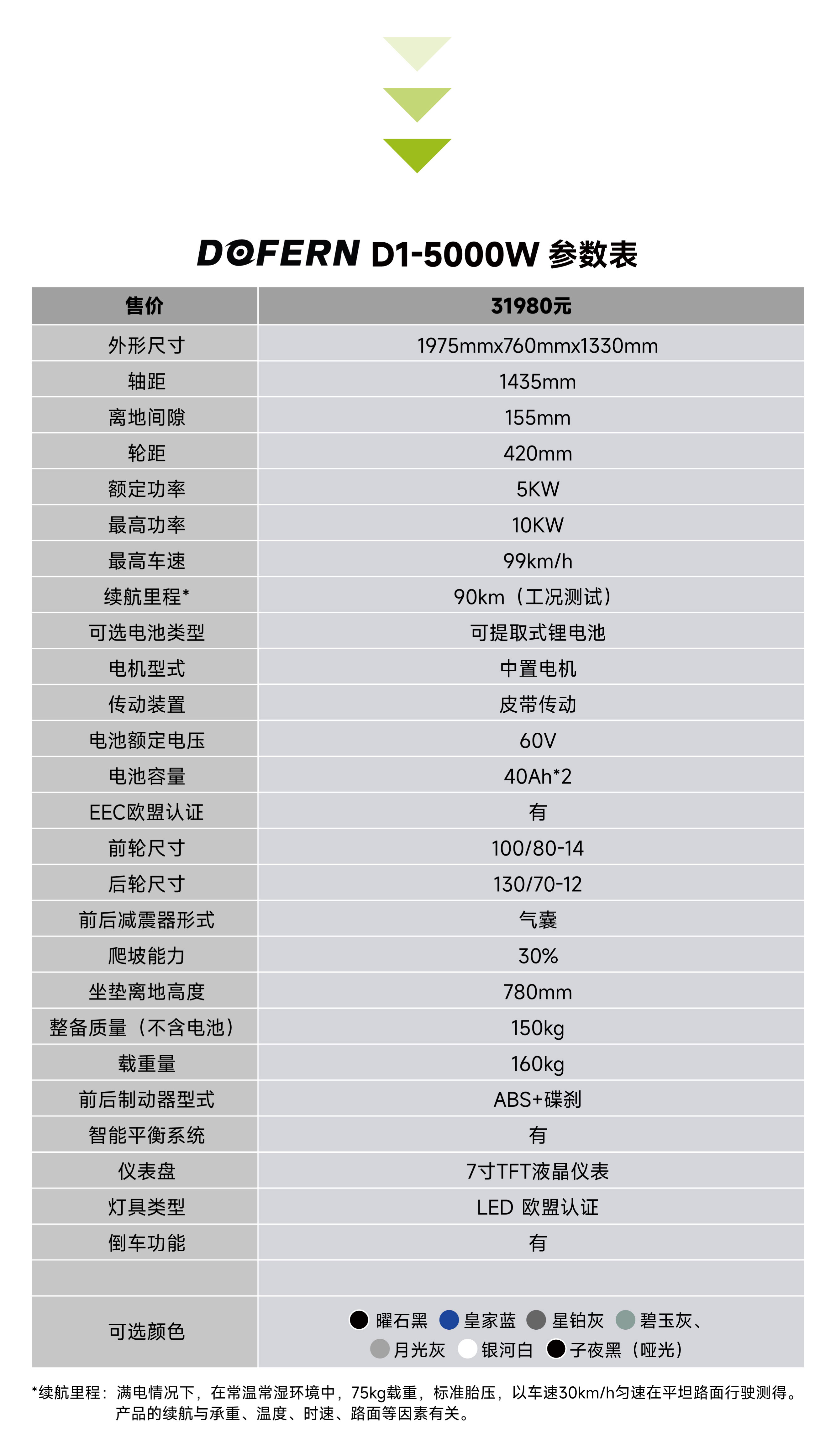

| 1500W Hub Motor | 3000W Hub Motor | 5000W Central Motor | |
| Length×Width×Height(mm) | 1980×760×1340 | 1980×760×1340 | 1980×760×1340 |
| Wheelbase(mm) | 1460 | 1460 | 1460 |
| Wheeltrack(mm) | 420 | 420 | 420 |
| Fuel Type | electric only | electric only | electric only |
| Motor Power(w) | 1500 | 3000 | 5000 |
| Motor Controller | FOC Sine wave controller | FOC Sine wave controller | FOC Sine wave controller |
| Rated Voltage(v) | 60 | 60 | 60 |
| Battery Capacity | 40AH lithium battery | 40AH*2 lithium battery | 40AH*2/40AH*4 lithium battery |
| Distance Per Charge(km) | 80 | 100 | 100/200 |
| Charging Time(h) | 5 | 5 | 5 |
| Transmission Model | Belt Transmission | ||
| Front Shock Absorber | Sleeve Oil Damping Type | Sleeve Oil Damping Type | Sleeve Oil Damping Type |
| Rear Shock Absorber | Spring Hydraulic Damping | Spring Hydraulic Damping | Spring Hydraulic Damping |

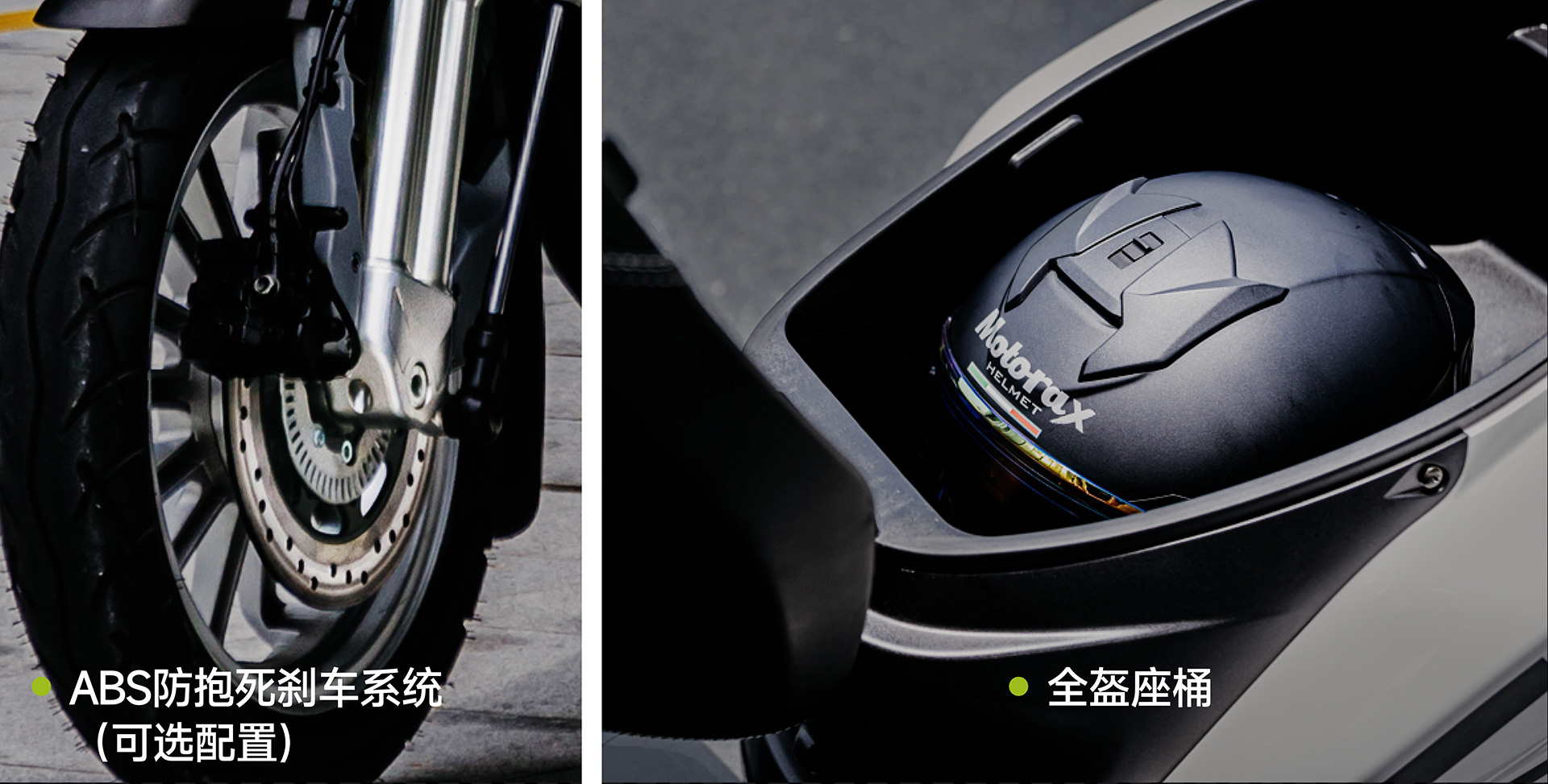

| Front Brake Mode | 260mm Rotor Double-piston Hydraulic Disk | 260mm Rotor Double-piston Hydraulic Disk | 260mm Rotor Double-piston Hydraulic Disk |
| Rear Brake Mode | 220mm Rotor Double-piston Hydraulic Disk | 220mm Rotor Double-piston Hydraulic Disk | 220mm Rotor Double-piston Hydraulic Disk |
| Front Tire Specification | 80/80-14 | 80/80-14 | 80/80-14 |
| Rear Tire Specification | 130/70-12 | 130/70-12 | 130/70-12 |
| Steering Mode | handle | handle | handle |
| Curb Weight(kg) | 130 | 140 | 140 |
| Loading Capacity(kg) | 160 | 160 | 160 |
| Maximum Speed(km/h) | 45 | 70 | 99 |
| Maximum Gradeability | ≥30% | ≥30% | ≥30% |
| Seat Height(mm) | 810 | 810 | 810 |
| Minimum Ground Clearance(mm) | 155 | 155 | 155 |
| Front Wheel Turning Angle | 40 degrees | 40 degrees | 40 degrees |
| Minimum Turning Radius | 2270 | 2270 | 2270 |
| Rate Capacity | 2 | 2 | 2 |

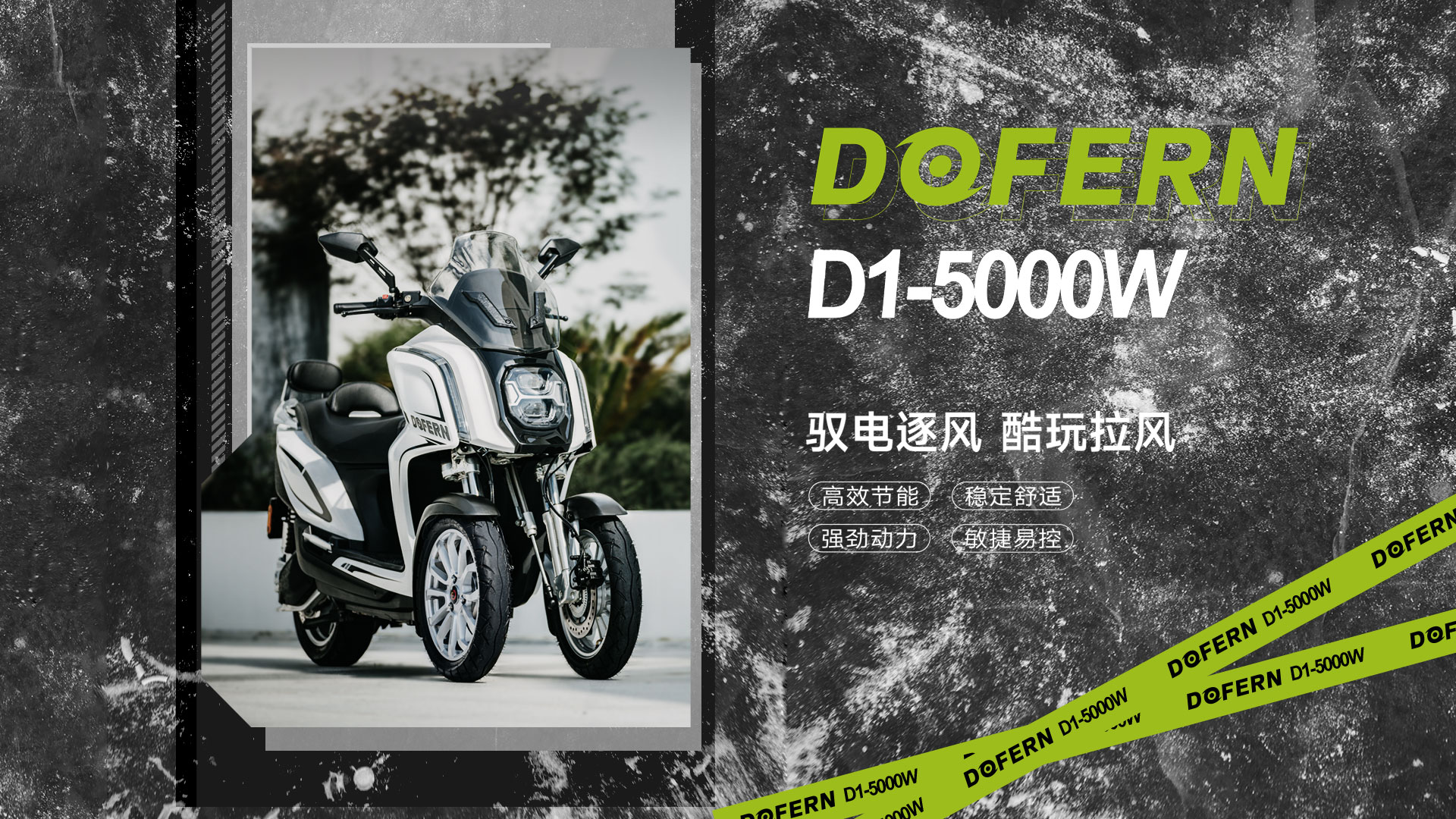

Dofern D1 will give you a perfect response in all driving conditions
